- Dolphin II
SAM Ultrasonic Testing Equipment

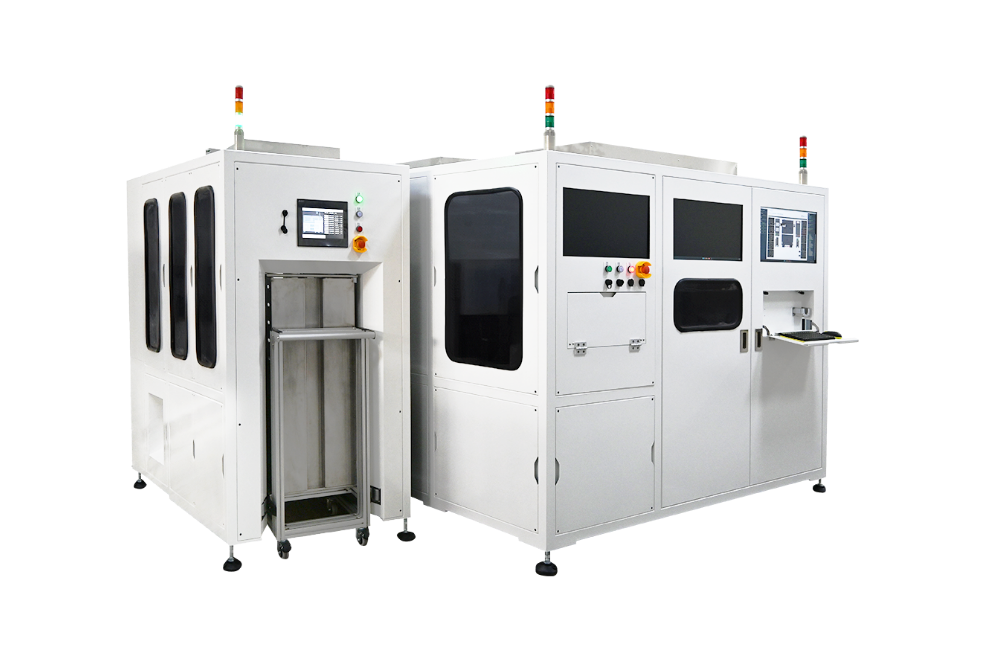

Dolphin II
| Test items | Sample style | IGBT module |
| Size range | Carrier 300mm x 430mm (based on the number of units that can be placed within the size) | |
| Test items | Internal defects | |
| Ultrasonic scanning | Test method | C-scan (single/dual probe) |
| Probe frequency | 10/30/40/50/100 MHz | |
| Image accuracy | Max. 32,000 x 32,000 pixel | |
| Equipment specifications | Equipment size | Length 4300mm x Width 2750mm x Height 2122mm |
| Feeding method | Can feed the whole car (Magazine), 10 trays per car, 10 products per tray | |
| Discharging method | Can discharge the whole car (Magazine), 10 trays per car, 10 products per tray | |
| Operation mode | Manual push in and take out of the trolley, the rest is fully automatic (including automatic isolation of NG products) | |
| Control method | PLC process control with PC image analysis serial connection | |
| Power supply specifications | 40kw, 220VAC single phase requires grounding wire | |
| Air pressure specifications | 3350 LPM, 6kgf/cm2 | |
| Pure water requirements | 20 LPM, 4kgf/cm2 |
【Features】
• Batch testing (10 trays per batch, 10 products per tray)
• Multi-frequency probes (10/30/40/50/100 MHz)
• Automatic classification of OK/NG products
• Clear progress reporting at a glance
【Product Description】
This ultrasonic testing machine is specifically designed for the high-precision inspection of automotive electronic components. It integrates the latest ultrasonic technology with automated controls, enabling accurate detection of internal defects. The system performs automated inspection processes, including automatic segregation of defective products, to maximize testing efficiency and ensure product quality.
• Batch testing (10 trays per batch, 10 products per tray)
• Multi-frequency probes (10/30/40/50/100 MHz)
• Automatic classification of OK/NG products
• Clear progress reporting at a glance
【Product Description】
This ultrasonic testing machine is specifically designed for the high-precision inspection of automotive electronic components. It integrates the latest ultrasonic technology with automated controls, enabling accurate detection of internal defects. The system performs automated inspection processes, including automatic segregation of defective products, to maximize testing efficiency and ensure product quality.
